What Are the Principles and Components of a Checkweigher?

Working principle of weighing checkweigher In order to ensure that only one product passes through the weighing platform during the working process of the checkweigher machine



Jacketed glass reactors, often known as automatic weighing machines, are essential equipment in many industries—especially food production and packaging. They not only ensure that products meet precise weight requirements but also help maintain quality control and boost production efficiency. In this article, we’ll explore the core components, operating principles, and applications of checkweighers, providing insights into why these machines are a godsend on the production line.



Introduction to Checkweighers



In industries such as food processing, sports nutrition, and even agriculture, consistency in product weight is critical. A checkweigher automatically verifies the net weight of products as they move along a production line. If a product does not meet predetermined weight criteria, it is automatically rejected. This functionality helps reduce waste, prevent customer complaints, and comply with industry standards, all while saving valuable labor costs.

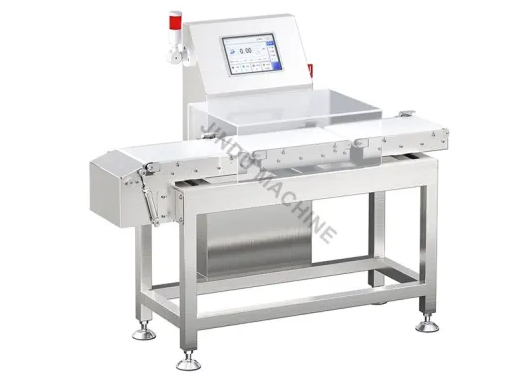

Core Components of a Checkweigher



A checkweigher machine is a highly integrated system, and its performance relies on three key components:



1. Weighing Conveyor

- Function: The weighing conveyor plays a pivotal role by collecting the weight signals generated by the products. As items pass over the conveyor, the system captures weight data in real-time.

- Signal Processing: The weight signal collected is transmitted to the controller. This ensures that the weight measurements are accurate and consistent across all products.



2. Controller

- Central Intelligence: The controller is the brain of the checkweigher system. It receives the weight signals from the weighing conveyor and processes these signals to determine if the product’s net weight falls within the acceptable range.

- Decision-Making: Based on preset criteria, the controller can direct products to different channels, ensuring that only those meeting quality standards move forward in the production process.



3. Feeding and Discharging Conveyors

- Feeding Conveyor: This conveyor ensures that products enter the weighing area with the correct spacing and speed. Proper spacing is essential to avoid overlapping items, which could lead to inaccurate measurements.

- Discharging Conveyor: After weighing, the discharging conveyor transports the products out of the weighing zone and onto the next production stage, ensuring a smooth workflow.



Working Principle of a Checkweigher



Working principle of weighing checkweigher In order to ensure that only one product passes through the weighing platform during the working process of the checkweigher machine, the speed of the feeding conveyor is jointly determined according to the spacing of the products and the required speed.



The operation of a checkweigher involves a sequence of well-coordinated steps designed to guarantee that each product is accurately weighed:



1. Product Entry: As a product approaches the weighing conveyor, the system uses external sensors to detect its arrival.

2. Weight Signal Collection: Once the product is on the weighing platform, the load cell starts measuring its weight. This weight data is continuously monitored as the product moves along the conveyor.

3. Signal Processing: The controller identifies a stable portion of the weight signal—usually when the product is fully on the platform—and processes this data to determine the net weight.

4. Product Classification: Based on the measured weight, the controller decides whether the product meets the required specifications. Products that do not qualify are diverted from the main production line.



This process ensures that each product is individually verified and classified, enabling high-speed production while maintaining strict quality control.



Main Applications of Checkweighers



Checkweighers are used across various industries to optimize production and ensure quality compliance. Some notable applications include:



- Food Industry: In food production and packaging, checkweighers ensure that packaged items, such as snacks or frozen foods, have the correct net weight. This prevents underweight packages from reaching consumers and maintains brand integrity.

- Fish Processing: The machine can grade fish by weight, separating different grades and ensuring consistent quality.

- Agriculture: For products like walnut meat, the checkweigher sorts items based on net weight, facilitating efficient grading and packaging.

- Sports and Fitness Nutrition: In industries where nutritional information is paramount, checkweighers guarantee that products like protein bars and supplements meet weight specifications.



By automating the weighing process, checkweighers not only improve efficiency but also significantly reduce labor costs, making them indispensable tools on modern production lines.



Conclusion



The integration of weighing conveyors, intelligent controllers, and synchronized feeding and discharging conveyors makes checkweighers a cornerstone in quality control and product classification. Their ability to rapidly and accurately measure net weight ensures that only products meeting strict standards continue down the production line. In industries ranging from food processing to agriculture, checkweighers play a vital role in maintaining product quality, optimizing production speeds, and ultimately contributing to cost savings and customer satisfaction.



Embracing such automated systems not only streamlines operations but also ensures that businesses can meet the ever-growing demand for consistency and precision in product quality.
