Why Your Fire Protection System Might Fail Without the Right Tank Capacity

In this article, we explore the hidden risks associated with undersized tanks, the engineering principles behind proper capacity design, how to calculate demand, and what procurement teams and facility engineers must consider during sourcing.



When it comes to industrial safety, fire protection systems are not an area for compromise. From factories and warehouses to power plants and high-rise buildings, these systems are designed to suppress fires in the critical early moments—minimizing damage and saving lives.

However, one crucial yet often overlooked factor can cause even the most sophisticated fire suppression system to fail: insufficient water tank capacity.

In this article, we explore the hidden risks associated with undersized tanks, the engineering principles behind proper capacity design, how to calculate demand, and what procurement teams and facility engineers must consider during sourcing.





1. The Role of Storage Tanks in Fire Protection Systems

Most fixed fire protection systems—especially sprinkler systems, standpipes, foam systems, and water mist systems—rely on a dedicated water source that can deliver high flow rates in emergencies.

While public water mains may serve this purpose in urban areas, dedicated Siphonic type are essential in locations with:

• Limited or unreliable municipal water supply
• High-volume suppression needs (e.g., petrochemical plants)
• Remote facilities (e.g., mines, solar farms, industrial parks)
• Long refill times or poor water pressure

Without adequate on-site water capacity, your fire suppression system is a paper tiger: functional on paper but ineffective in a real emergency.





2. What Happens When Tank Capacity Is Too Small?

Immediate System Failure

If the tank cannot maintain water pressure for the duration of a fire event, sprinklers or suppression systems may shut down prematurely—before the fire is under control.

Incomplete Area Coverage

Insufficient capacity may lead to only partial discharge in the affected zone, allowing the fire to spread unchecked.

Damage Escalation

Fire suppression systems are designed to buy time until fire departments arrive. If water runs out too early, this buffer disappears, leading to catastrophic escalation.

Non-Compliance & Liability

Building and fire codes such as NFPA 22, NFPA 13, and local ordinances set minimum requirements for tank sizing. Undersized tanks can lead to legal non-compliance, voided insurance, and legal liability in the event of fire damage or injury.




3. How Fire Tank Capacity Is Determined

Tank capacity isn’t just a guess—it is based on hydraulic calculations and worst-case fire scenarios. Key factors include:

Fire Hazard Classification

Different types of facilities have different risk levels:

• Light Hazard: e.g., offices, schools (low fuel load)
• Ordinary Hazard: e.g., warehouses, commercial kitchens
• Extra Hazard: e.g., flammable liquids, manufacturing plants

Higher hazard = greater required flow rates and duration.

Flow Rate Requirements

Typically measured in liters per minute (LPM) or gallons per minute (GPM), fire systems must maintain flow at a designated pressure for a certain duration. A high-piled warehouse may need over 1000 GPM for 90 minutes.

Duration of Operation

Duration is often mandated by code:

• NFPA 13 requires 30–90 minutes depending on building type.
• High-risk facilities may require 120 minutes or more.

Number of Zones or Risers

Multiple protected zones require larger capacity if multiple zones could activate simultaneously.

Refill Strategy

Will the tank be refilled during the fire? If not, the full event duration must be covered by the initial tank volume.



4. Real-World Example: What Can Go Wrong

Case Study: Undersized Tank at Logistics Hub

A global e-commerce warehouse installed an automatic sprinkler system with a 100,000-liter water tank. During a fire event in a high-rack storage zone, 9 sprinkler heads activated, requiring 1,800 liters/min.

• Available duration: ~55 minutes
• Required duration per code: 90 minutes

Result: System ran dry before fire was fully suppressed.
Damage: $12 million in losses, insurance claim denied due to code violation.

This case underscores that getting the math right can be the difference between suppression and disaster.





5. Types of Fire Water Storage Tanks

Tank choice affects not only capacity, but also installation cost, maintenance, and system reliability.

Type	Key Features	Best For

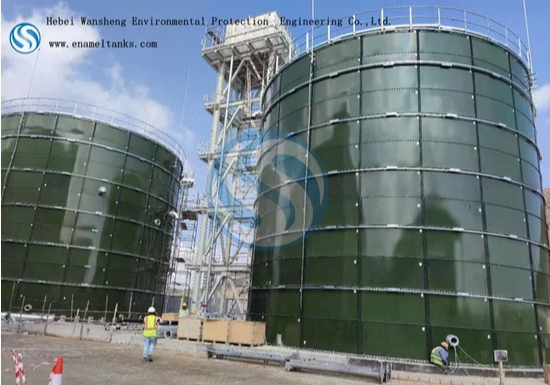

Steel Bolted Tanks	Modular, scalable, corrosion-resistant linings	Industrial plants, mining
Welded Steel Tanks	High strength, suitable for very large volumes	Refineries, power stations
GRP/FRP Tanks	Corrosion resistant, lightweight	Coastal areas, small-to-medium facilities
Concrete Tanks	Long life, high thermal insulation	Military, municipal storage
Bladder Tanks	Compact, uses internal bladders	Small commercial sites

Each has a typical size range and pressure rating. Choosing one depends on site conditions, required capacity, seismic safety, and fire code specifications.



6. Procurement Guidelines: Key Questions to Ask

If you're responsible for specifying or sourcing fire tanks, here’s what you must verify:

What is the minimum required tank volume based on worst-case discharge scenarios?
Is the tank certified to relevant codes (e.g., NFPA 22, FM Approved, UL Listed)?
What is the material construction and corrosion protection system?
Does the tank include a low-level alarm, inspection hatch, and overflow control?
What is the expected maintenance interval and cost?
Is the tank designed for seismic or wind loading, if applicable?
Is fire pump sizing matched to tank capacity and drawdown rate?



7. Sizing Mistakes to Avoid

Many failures stem from miscalculations or overly optimistic assumptions:

Using average instead of peak flow rates
Fire suppression must be designed for worst-case scenario, not average water usage.

Ignoring simultaneous system activations
Some facilities may have multiple zones that could be active during a fire.

Assuming refill from mains will be fast enough
Refill rates are often overestimated, especially in remote or low-pressure areas.

Treating capacity as a fixed value across seasons
In cold climates, ice formation can reduce available water volume by 5–15% unless anti-freeze measures are taken.



8. Compliance Considerations

Major international and regional standards affecting tank sizing and design include:

• NFPA 22 – Standards for water tanks used in fire protection
• NFPA 13 – Standards for sprinkler systems
• FM Global Data Sheets
• EN 12845 (Europe)
• GB50084-2017 (China)

Failing to follow these standards can void system certifications and lead to massive liability exposure.



9. Innovations and Monitoring

Modern fire tanks are increasingly equipped with:

• Real-time water level monitoring
• Remote inspection tools (e.g., drones, sensors)
• IoT integration for flow and pressure alarms
• Pre-filled modular bladder units for temporary setups

Investing in smarter tank systems can reduce inspection labor, improve reliability, and offer predictive failure analysis.



Final Thoughts: Don't Let the Tank Be the Weakest Link

Fire protection systems are only as strong as their weakest component. While design often focuses on pumps, pipes, and valves, it's the tank capacity that ultimately determines whether the system can operate effectively during a real fire.

A small miscalculation in tank size can result in system failure, property loss, regulatory fines, and even fatalities.

Procurement managers, facility engineers, and safety officers must treat water tank sizing as a central pillar of fire protection—not an afterthought.
